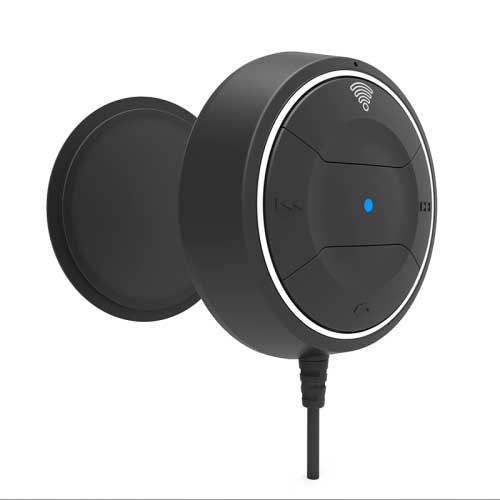

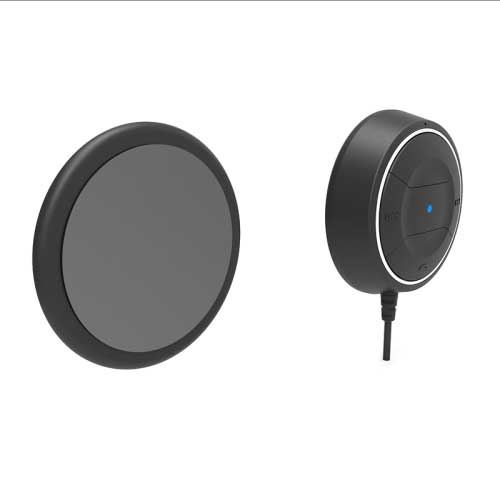

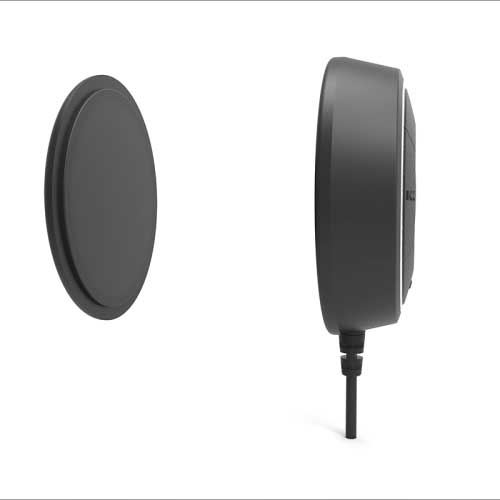

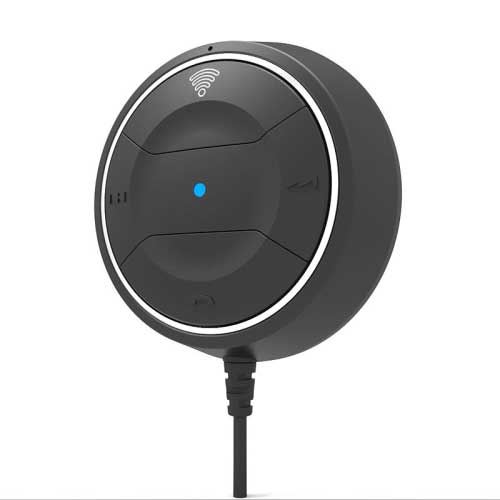

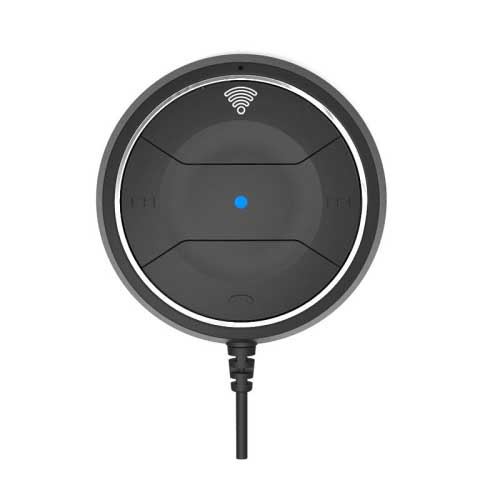

JRBC01 Bluetooth 4.0 Hands-Free Car Kit

JRBC01 Bluetooth 4.0 Hands-Free Car Kit

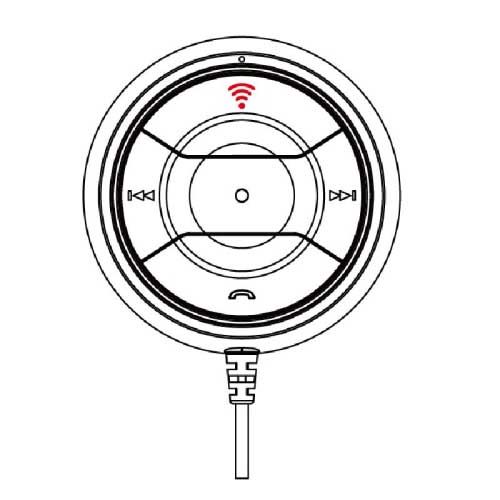

Multifunction button: Play, pause or stop music

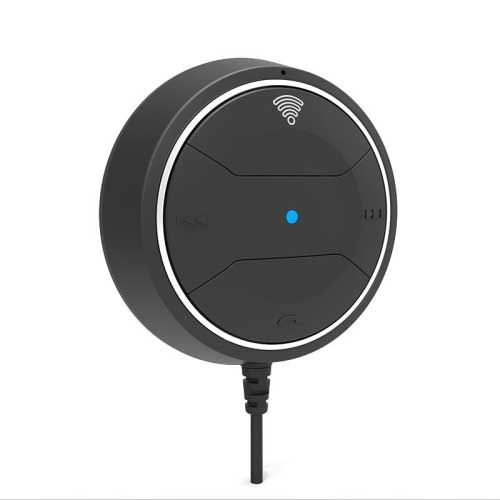

LED Indicator
Forward / Next Track, Volume up / +; Back / Previous Track, Volume Down / -
Pairing your Bluetooth Hands-free car kit: Connected the JRBC01 with speaker by 3.5mm audio cable. In power off mode, press and hold the multifunction key for 3seconds until LED flashes between Red and Blue alternately. Pair with your device via "search / add new Bluetooth device" on the media device. If a PIN code prompts, enter: "0000".
Music operation: Play / Pause: Press once on the multifunction button. Next song: Press once on "Next" button. Previous song: Press once on "Previous" button. Volume up: Press and hold on "Up" button. When a maximum volume, there will be one "BEEP". Volume down: Press and hold on "Down" button. When a minimum volume, there will be one "BEEP"
Phone Operation: Answer a Call - On Incoming Call, Press the multifunction button once. End a call - While in a call, press the multifunction button once. Refuse a Call - On Incoming Call, Press and hold the multifunction button for 2 seconds. Redial the last number - Redial by pressing the MFB twice when the phone is paired. Switch the two call, press the "multifunction" 2 times. MIC Mute function-press the "Next and previous" button once at the same time

Specification:
Model JRBC01
Material ABS
Connector USB 2.0, 3.5mm
USB port output Dual 2.1A
Size 45 * 10mm

Parameters
Bluetooth Version V4.0
Transmission Distance 10m

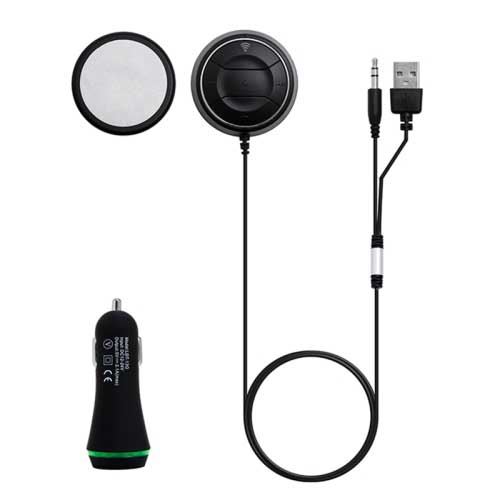

Package Include
1 x User Manual

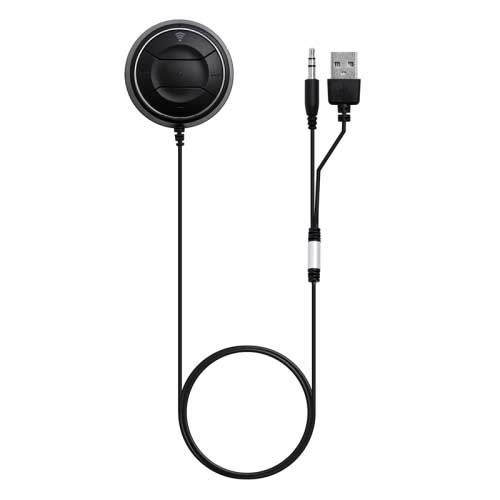

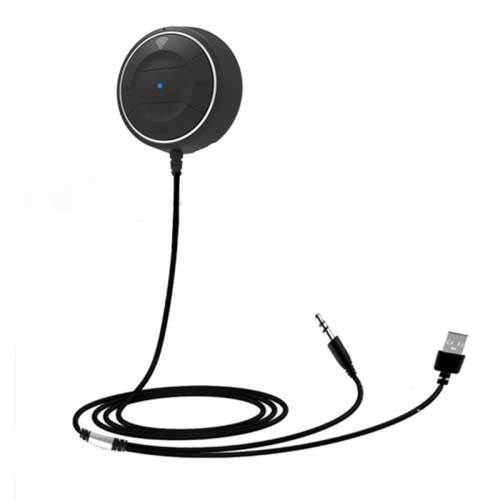

1 x 3.5mm Audio Cable

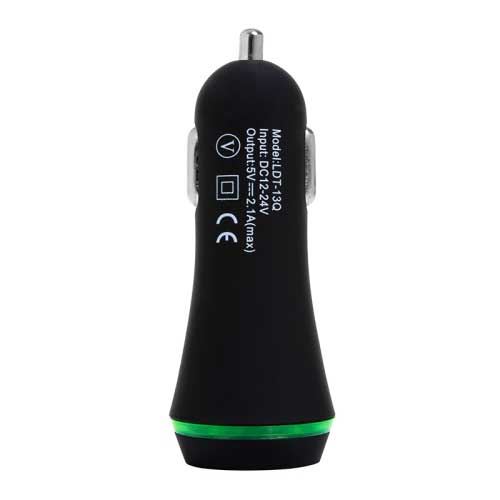

1 x Car Charger
